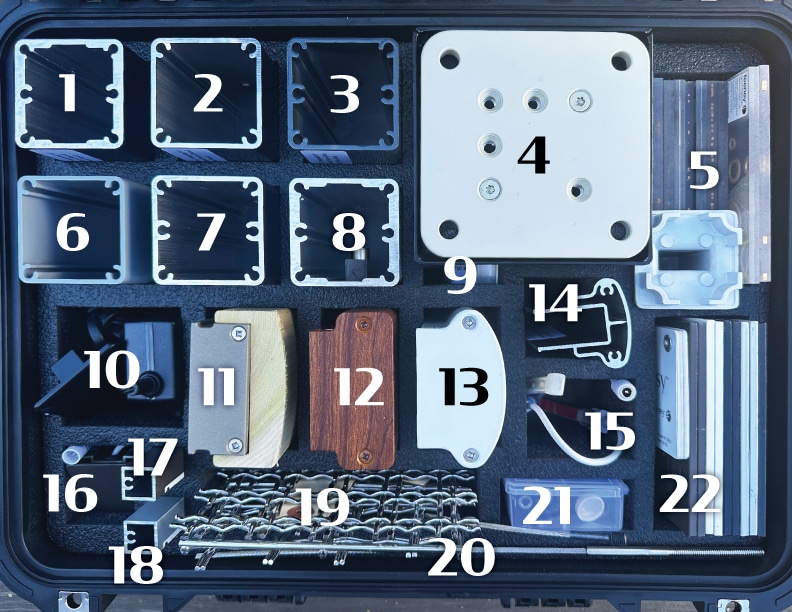

Home > DesignRail® Sample Case
1. DesignRail® Heavy Duty Post

w/Round Holes in Textured Black (6” sample)



2. DesignRail Standard Post

w/Round Holes (6” sample)



3. Commercial Post

w/Stair Slots (29°-34°) in Blue Steel



4. DesignRail® Single Corner Posts



w/Horizontal Slots in Coffee Cream (6” sample – loose insert) with Base Plate Cover in Black, plus Sample Case Info Card






5. Resin Panel Infill



(4”x4” samples):



  1. Bear Grass Lite
  2. Ginko Thatch
  3. Connection Square Grey
  4. Bamboo Rings
  5. Ting Ting
  6. Fossil Leaf
  7. Rice Grass
  8. Kathali Grays
  9. Thatch 50%





design rail case samples
6. DesignRail® Standard Post

w/Stair Slots (29°-34°) in Dove Gray







7. DesignRail® Commercial Post

w/Round Holes in Oil Rubbed Bronze (6” sample)

8. DesignRail® Quck-Connect® Termination Post

in Iron Gray with sample of Quick-Connect® Inset fitting inside

9. RCBs (Rail Connecting Brackets) – 1″ sample

Series 100 or 150 Top Rail and PNL Bottom Rail and RCBs for all other Top Rails







10. Universal Post Cap in Black

Plus 24V 48W DC Wall Adapter Black



11. DesignRail® Low-Profile Top Rail

Series 450 w/ Cedar Cap in Sparkling Champagne (6″ sample)



12. DesignRail® Rectangluer Top Rail

Series 200 in Walnut Wood Grain (6″ sample)







13. DesignRail® Elliptical Top Rail

Series 350 Bright White (6″ sample)



14. DesignRail® Graspable Top Rail

Series 150 in Black (6″ sample)



15. 4″ LED Rail Light Strip

6″ strip with connectors







16. LED Post Accent Lights

Bronze



17. Intermediate Picket for CableRail Infill

With holes, in Bronze (6″ sample)



18. Vertical Picket Infill

No holes, in Silver (6″ sample)







19. Stainless Steel Mesh Panel Infill

(6”x 6” samples): in Metropolitan®, Horizon®, Dazzle® and Allure®. Plus, Splice Plates: 90° and 45°



20. Cable Samples

CableRail Kit – 1/8″ cable for metal. Conceal Kit – 1/8″ cable



21. Accessory case containing:
  1. Colored End Caps: Black, White, Brown, Gray, Silver, Taupe, Bronze, Green, Cream
  2. CableRail Kit hardware and Quick-Connect® Release Tool
  3. CableRail Conceal fittings
  4. Conceal End Caps: Black, Bronze, Silver, WhiteStainless Steel End Caps: Dome, Crown, Chamfer



22. Laser-cut Aluminum Infill Panel

Colors (6″ x 6″ samples)

(6”x 6” samples):

  1. Sverra® – Silver
  2. Cypher® – Textured Black
  3. Pisces® – Bright White
  4. Cubist® – Bronze
  5. Bound® – Silver
  6. Torrent® – Modern White
  7. Seagrass® – Textured Black
  8. Agama® – Matte Black
  9. Trillium® – Bronze

PLUS: ColorEasy™ Fan Deck
